1_Linear static analysis

First example is linear static analysis. This is my first post, Im going to start with easy.

This example is from undergraduate class

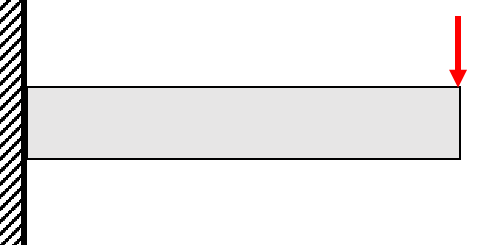

Cantilever beam



The cantilever example through Hypermesh.

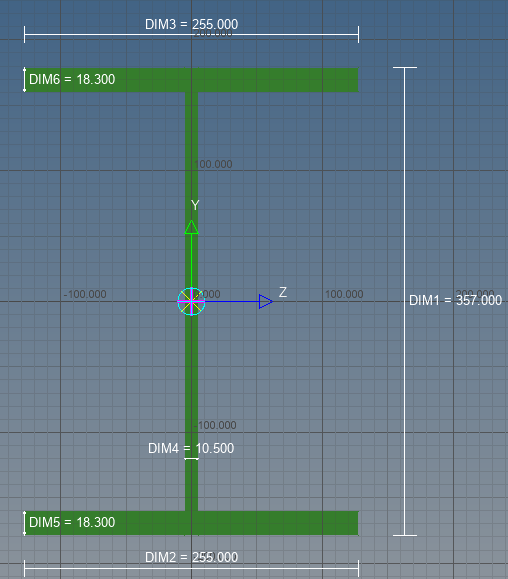

Cross section of cantilever beam

The cantilevers has I-shaped cross section.



Run Hyperworks

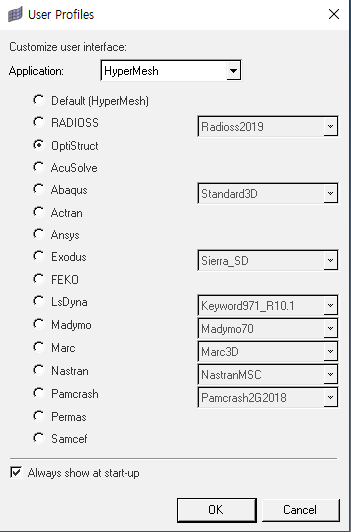

After running, select OptiStruct in the user profiles

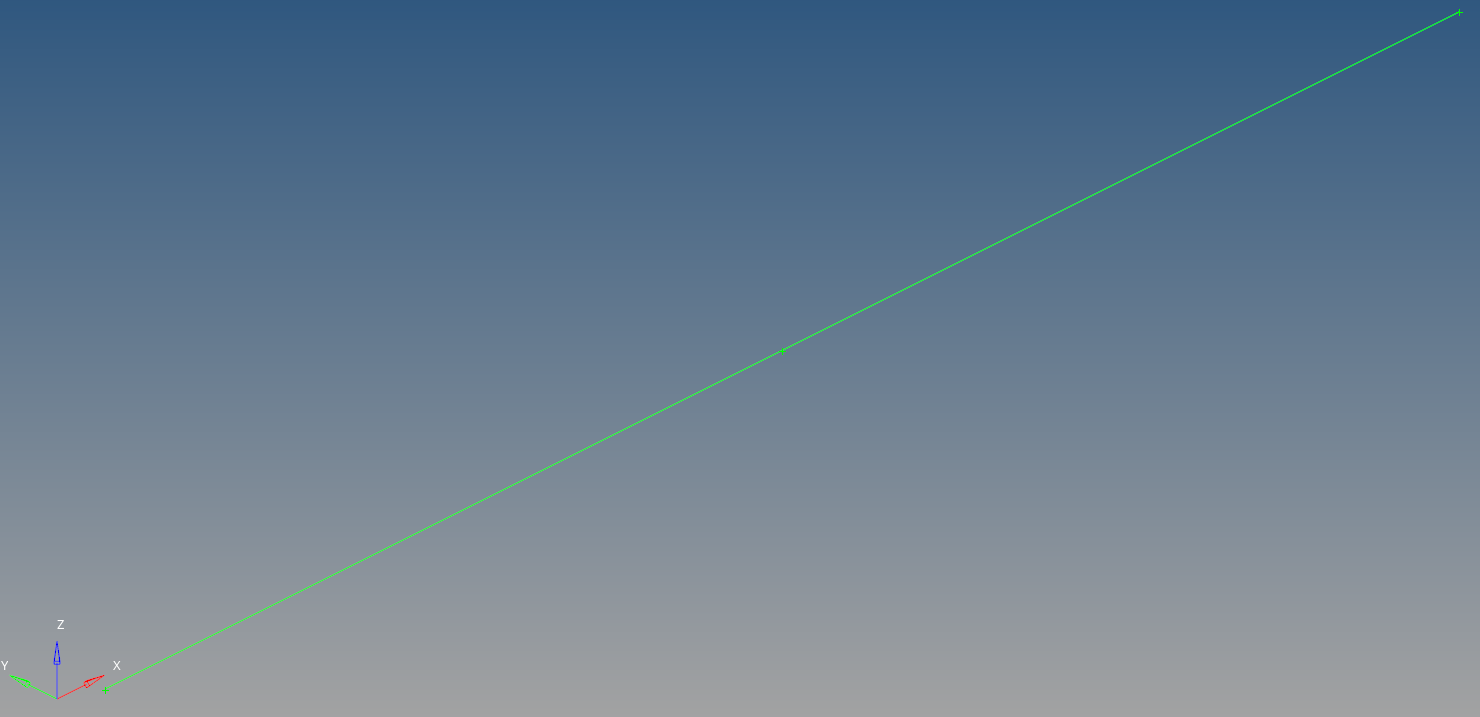

First, drow a line

Geom - lines

Start point : 0, 0, 0

End point : 5000, 0, 0





Create - BeamSection

define parameter

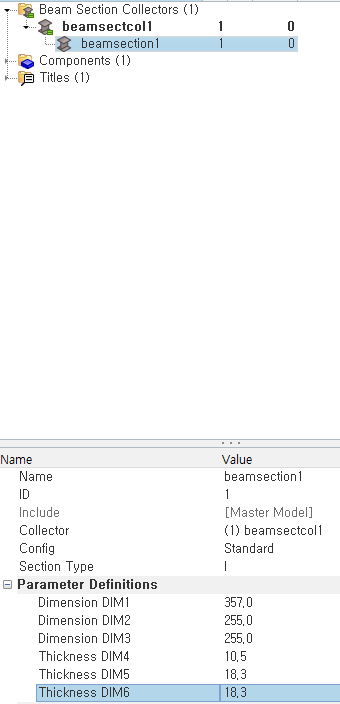

Beam section

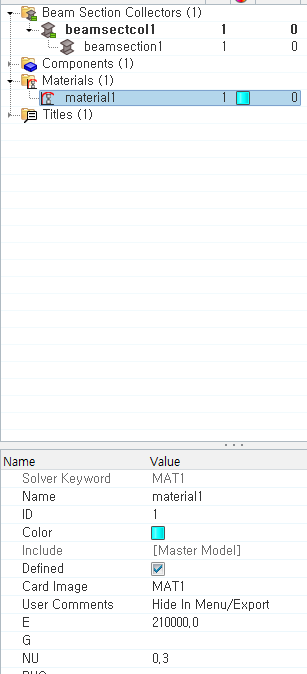

Create - Materials

Card Image : MAT1

MAT1 : generally used linear-elastic

E : 210000

NU = 0.3

Materials



Create - Properties

Card Image : PBEAML

-PBEAML : described information of beam section

Material : (1) matarial

Beam Section : (1) beamsection1

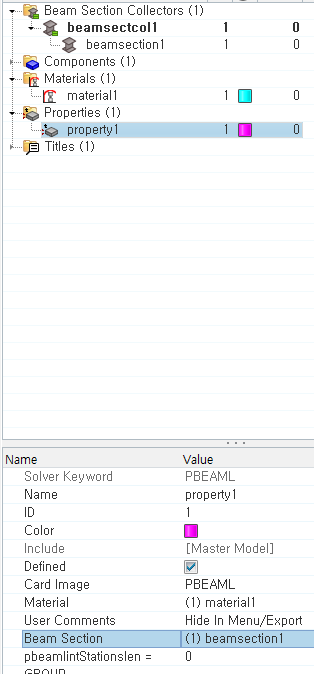

Properties



Components

Property : (1) property



second, create a mesh

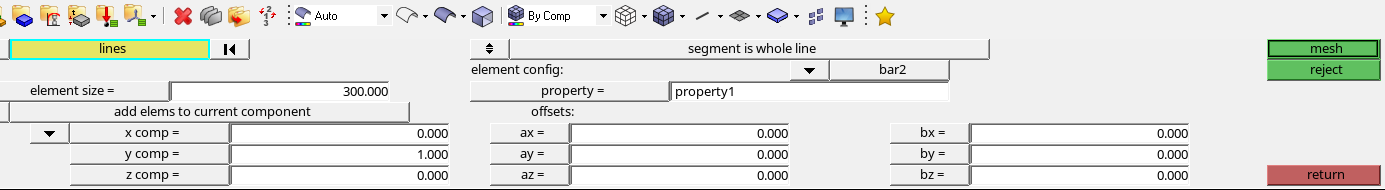

1D - line mesh

line mesh

element size : 300

property : property1

components : 0, 1, 0

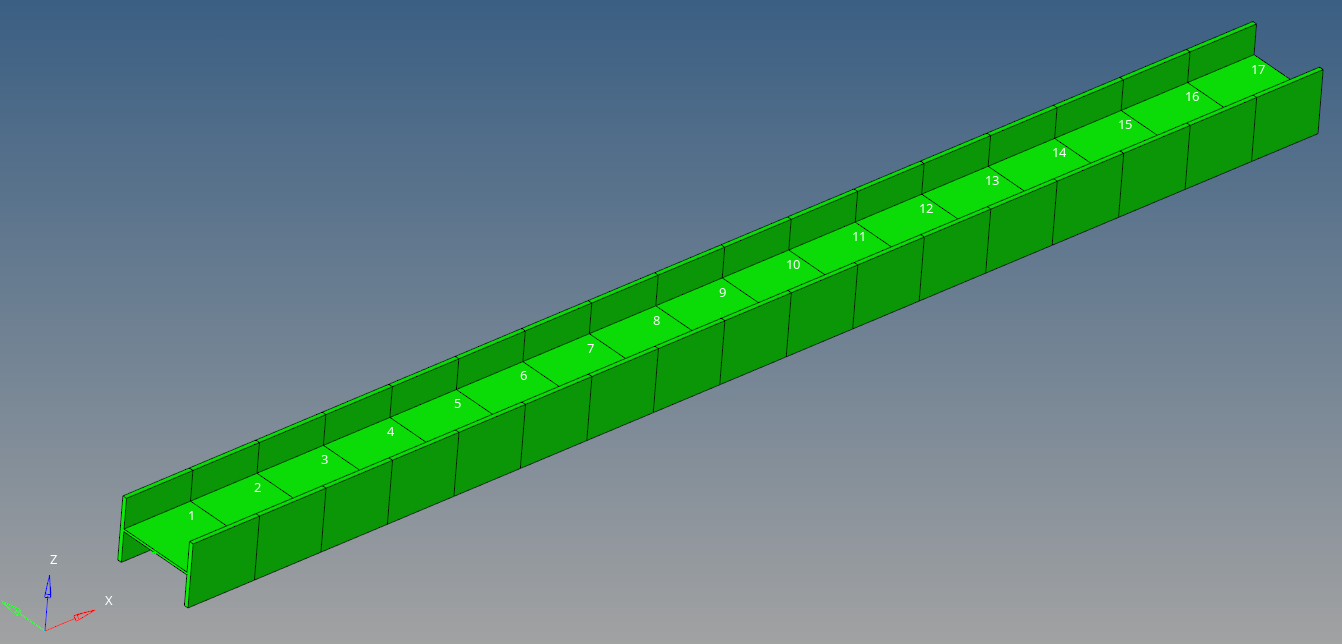

1D Traditional and Detailed Element Presentation





Third, define the constraints

Create - Load Collectors

Name : spc (single point constraints)



BCs - Create - Constraints

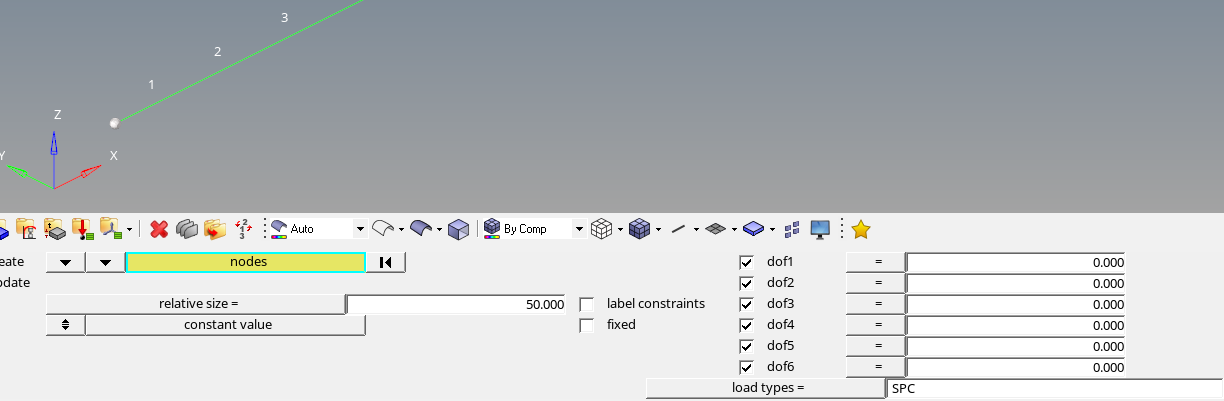

Constraints

Check All dof and select left node



Define a load

Create - Load Collectors

Name : force

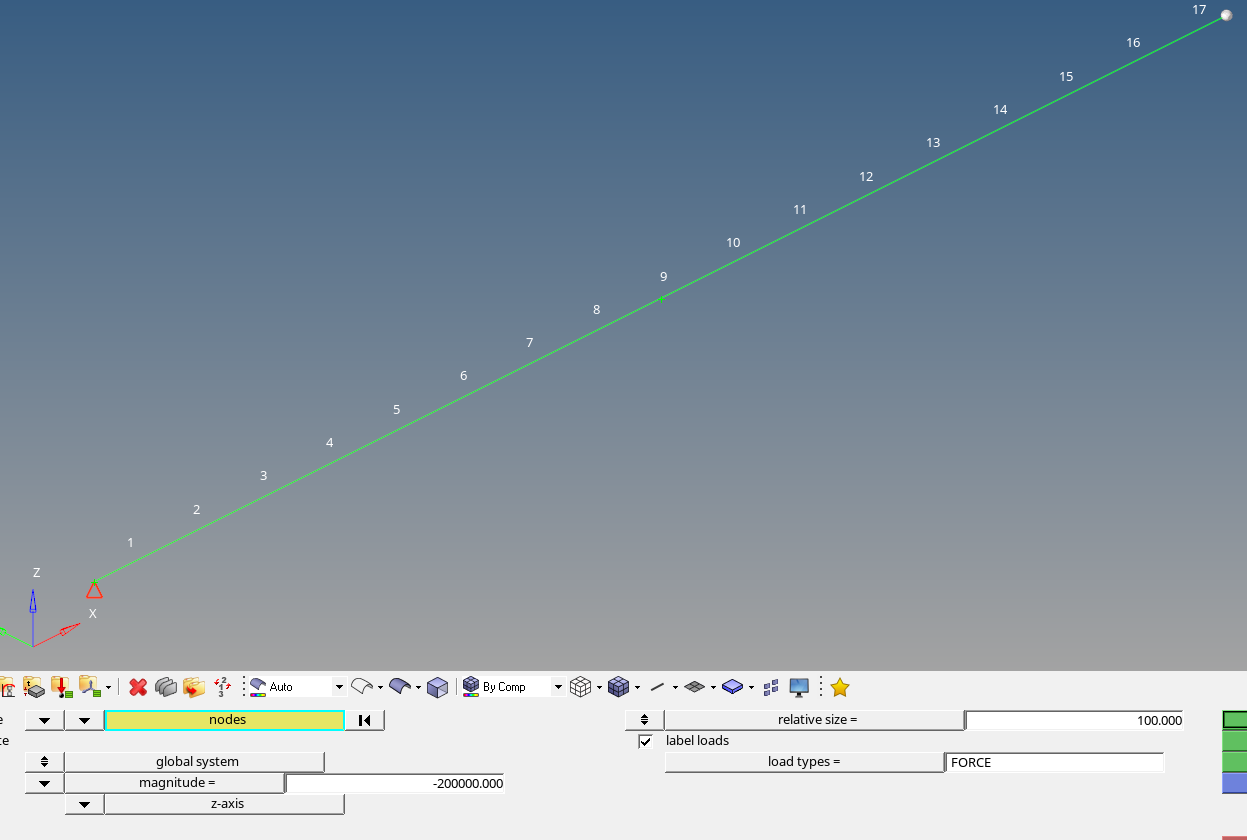

BCs - Create - Forces

magnitude : -200 kN

axis : z-axis



Select the right node to define load



Finally, set the load case

Create - Load Steps

Analysis type : Linear Staric

SPC : (1) spc

LOAD : (2) force

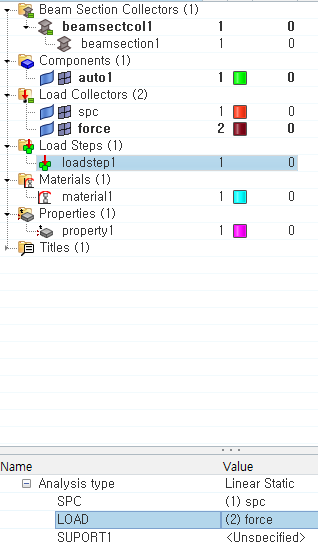

Load steps



Analysis - OptiStruct

export options : all

run options : analysis

memory options : memory default

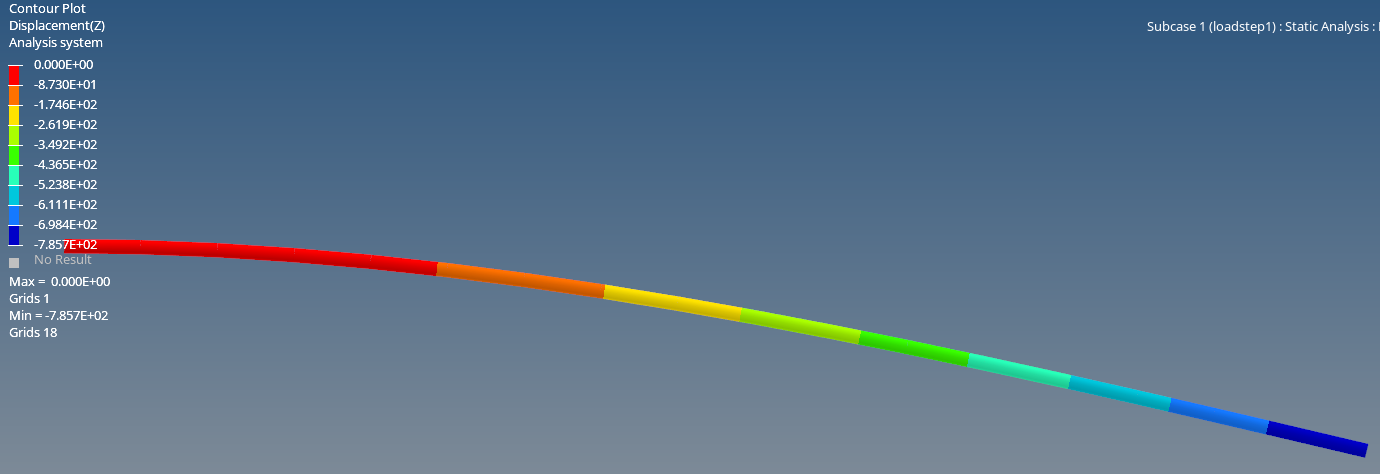

The maximum displacement(z) is 785mm

In element stresses, we can see values at specific parts of the section geometry.
