Modal analysis is a method for analyzing the vibration characteristics of a system.
Modal analysis can reveal important characteristics of a system, such as natural frequencies and mode shapes.
With this information, it is important to predict whether the structure is resonant and how it will deform under vibration.

where

Motion equation for a single degree of freedom system with no damping and no external loads are as follows
Single degree of freedom system means that a single object moves in only one direction.

Also, motion equation for a multi degree of freedom system with no damping and no external loads are as follows.

To use Hypermesh to solve a simple natural frequency problem.

Geometric information
L : 4550mm
I : 2700mm
material : alloy steel
E : 210 GPa
v : 0.28
density : 1.519e-5 kg/mm^3

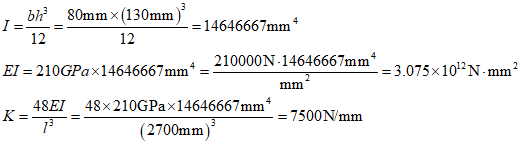

cross section : 80mm*130mm (rectangle)

where
Hmm.... I don't think I understand mechanical vibration well enough, so I'll have to study the rest of this in a future post.
