Deep Learning

173_Time Series Forecasting with LSTMs(2)

elif 2024. 5. 22. 22:21

Continuing from the previous post(172_Time Series Forecasting with LSTMs).



def train_model(
  model,
  train_data,
  train_labels,
  test_data=None,
  test_labels=None
):
  loss_fn = torch.nn.MSELoss(reduction='sum')

  optimiser = torch.optim.Adam(model.parameters(), lr=1e-3)
  num_epochs = 60

  train_hist = np.zeros(num_epochs)
  test_hist = np.zeros(num_epochs)

  for t in range(num_epochs):
    model.reset_hidden_state()

    y_pred = model(X_train)

    loss = loss_fn(y_pred.float(), y_train)

    if test_data is not None:
      with torch.no_grad():
        y_test_pred = model(X_test)
        test_loss = loss_fn(y_test_pred.float(), y_test)
      test_hist[t] = test_loss.item()

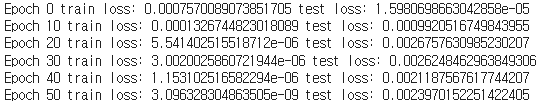

      if t % 10 == 0:
        print(f'Epoch {t} train loss: {loss.item()} test loss: {test_loss.item()}')
    elif t % 10 == 0:
      print(f'Epoch {t} train loss: {loss.item()}')

    train_hist[t] = loss.item()

    optimiser.zero_grad()

    loss.backward()

    optimiser.step()

  return model.eval(), train_hist, test_hist



The code below defines a function to train the given model. The loss function used is MSELoss, and the optimization algorithm is Adam with the number of epochs set to 60. The for loop iterates through the specified number of epochs, initializing the model's hidden state, comparing predictions to actual values to calculate the loss. If test data is provided, it calculates and stores the test loss, printing it every 10 epochs. The training loss is stored, and backpropagation is used to compute the gradients and update the weights.



model = CoronaVirusPredictor(
  n_features=1,
  n_hidden=512,
  seq_len=seq_length,
  n_layers=2
)
model, train_hist, test_hist = train_model(
  model,
  X_train,
  y_train,
  X_test,
  y_test
)



plt.plot(train_hist, label="Training loss")
plt.plot(test_hist, label="Test loss")
plt.ylim((0, 0.01))
plt.legend();





The result data appears a bit unusual. Ideally, the training loss should be lower than the test loss, but regardless of how small the value, the test loss does not decrease and seems to oscillate. It seems this issue arises because the number of time series data points is too small.

The current model can only predict the first future value. Therefore, to predict multiple future values, we can use the predicted value as the input for the next day's prediction, continuing this process iteratively.



with torch.no_grad():
  test_seq = X_test[:1]
  preds = []
  for _ in range(len(X_test)):
    y_test_pred = model(test_seq)
    pred = torch.flatten(y_test_pred).item()
    preds.append(pred)
    new_seq = test_seq.numpy().flatten()
    new_seq = np.append(new_seq, [pred])
    new_seq = new_seq[1:]
    test_seq = torch.as_tensor(new_seq).view(1, seq_length, 1).float()


true_cases = scaler.inverse_transform(
    np.expand_dims(y_test.flatten().numpy(), axis=0)
).flatten()

predicted_cases = scaler.inverse_transform(
  np.expand_dims(preds, axis=0)
).flatten()



The code below performs predictions on the test data using the trained model and reverts the predicted results back to the original scale. It iterates through the test data, calculates the model's predictions using the current sequence, adds the predicted value to the sequence, and removes the first value to maintain the sequence length. The predictions are then transformed back to the original scale to allow comparison between the predicted and actual values. This helps evaluate how well the model predicts future values of the time series data.



plt.plot(
  daily_cases.index[:len(train_data)],
  scaler.inverse_transform(train_data).flatten(),
  label='Historical Daily Cases'
)

plt.plot(
  daily_cases.index[len(train_data):len(train_data) + len(true_cases)],
  true_cases,
  label='Real Daily Cases'
)

plt.plot(
  daily_cases.index[len(train_data):len(train_data) + len(true_cases)],
  predicted_cases,
  label='Predicted Daily Cases'
)

plt.legend();

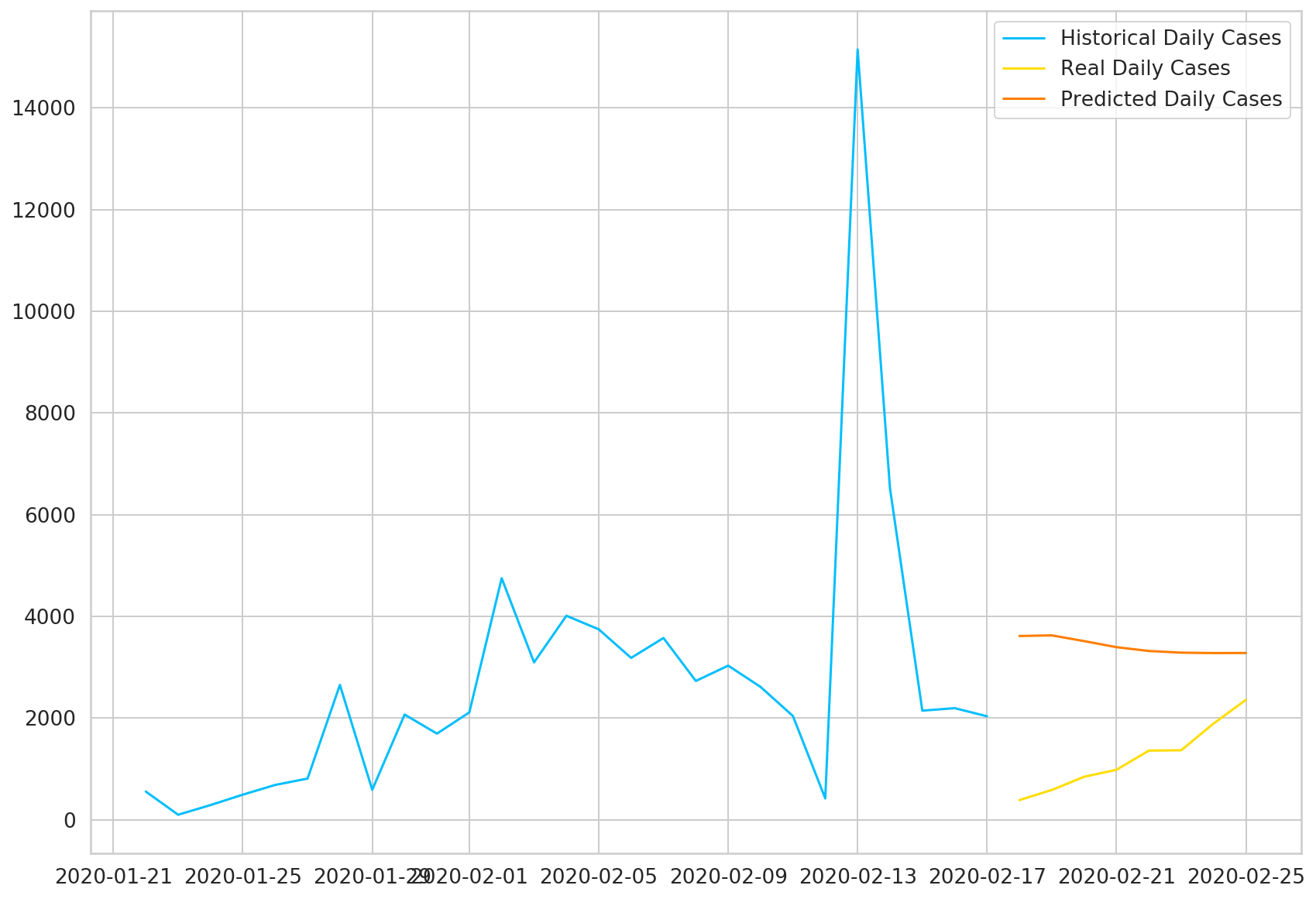

The performance of the predictions is not good. This is likely because the model has a very high dependency on the first predicted value, and the limited amount of data exacerbates this issue.



scaler = MinMaxScaler()

scaler = scaler.fit(np.expand_dims(daily_cases, axis=1))

all_data = scaler.transform(np.expand_dims(daily_cases, axis=1))

X_all, y_all = create_sequences(all_data, seq_length)

X_all = torch.from_numpy(X_all).float()
y_all = torch.from_numpy(y_all).float()

model = CoronaVirusPredictor(
  n_features=1,
  n_hidden=512,
  seq_len=seq_length,
  n_layers=2
)
model, train_hist, _ = train_model(model, X_all, y_all)



DAYS_TO_PREDICT = 12

with torch.no_grad():
  test_seq = X_all[:1]
  preds = []
  for _ in range(DAYS_TO_PREDICT):
    y_test_pred = model(test_seq)
    pred = torch.flatten(y_test_pred).item()
    preds.append(pred)
    new_seq = test_seq.numpy().flatten()
    new_seq = np.append(new_seq, [pred])
    new_seq = new_seq[1:]
    test_seq = torch.as_tensor(new_seq).view(1, seq_length, 1).float()

predicted_cases = scaler.inverse_transform(np.expand_dims(preds, axis=0)).flatten()

predicted_index = pd.date_range(
  start=daily_cases.index[-1],
  periods=DAYS_TO_PREDICT + 1,
  closed='right'
)

predicted_cases = pd.Series(
  data=predicted_cases,
  index=predicted_index
)

plt.plot(daily_cases, label='Historical Daily Cases')
plt.plot(predicted_cases, label='Predicted Daily Cases')
plt.legend();





We have explored an example of predicting future values using time series data. However, forecasting time series data can be quite challenging, and the accuracy may be low. For detailed explanations and code, please refer to the references below.



ref : Venelin Valkov - Get SH_T Done with PyTorch_ Solve Real-world Machine Learning Problems with Deep Neural Networks in Python-Venelin Valkov (2020)
